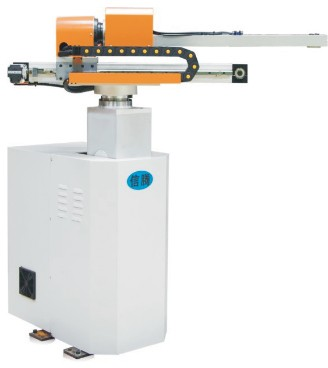

Multiple axises robot(4axis and 5axis)
Multiple axises robot(4axis and
5axis)
lt-has four-degrees of freedom: left-and right-rotation,up and down-lifting, front-andrear-telescopic,and end rotation.It canmeet-the product-handlingand loading and unloading requirements between-stamping-machines(or other work stations) of different heights and different-distances. Production efficiency:7-10 times/minute.
Main body lifting transmission J1 axis | 1 set of built-in brake servo motor |
Ball screw drive + linear guide | |
Stroke：0-400mm | |
Max lifting speed：1.6m/s | |
Overall rotation transmission J2 axis | 1 set of servo motor + high-precision reducer |
Rotation angle: 270 | |
Radius of rotation：1500-1800mm | |
Max rotation speed：225°/S | |
Arm front and rear telescopic transmission J3 axis | 1 set of servo motor + synchronous belt drive |
Telescopic distance: 500mm | |
Max telescopic speed: 2.0m/S | |
Arm horizontal rotation transmission J4 axis | 1 set of servo motor + high-precision planetary reducer |
Rotation angle: 220 | |
Max rotation speed：360°/S | |
The end of the arm turns left and right to drive the J5 axis (Z-axis direction turning axis) | 1 set of servo motor + high-precision planetary reducer |
Rotation angle: 270 | |
rotation speed：360°/S |
